Wire Mesh
Dimensions [Inch] | Wire Diameter [Inch] | Pounds/ 100 sq.ft. |
---|---|---|
6 x 6 x 10/10 6 x 6 x 9/9 6 x 6 x 6/6 6 x 6 x 4/4 4 x 4 x 10/10 4 x 4 x 9/9 4 x 4 x 6/6 4 x 4 x 4/4
|
0.128 0.144 0.192 0.232
0.128 0.144 0.192 0.232
|
21 25 42 58
31 37 62 85
|
Expended metal
SWD - Short Width Diamond LWD - Long Width Diamond sq.ft. - Square Foot |
---|

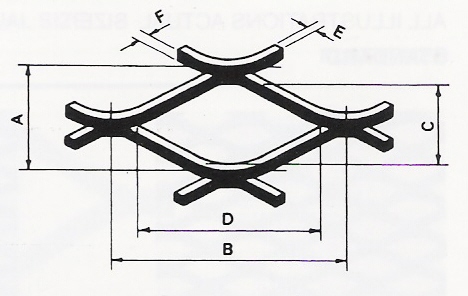

A - Center to Center of SWD B - Center to Center of LWD C - Size of opening SWD D -Size of opening LWD E - Thickness of strand F - Width of strand |
Standard | |||||||
---|---|---|---|---|---|---|---|
No. Style | Pounds/ 100 sq.ft. | A [Inch] | B [Inch] | C [Inch] | D [Inch] | E [Inch] | F [Inch] |
3/16 - 22 3/16 - 20 1/4 - 20 1/4 - 18 5/16 - 22 5/16 - 20 5/16 - 18 1/2 - 20 1/2 - 18 1/2 - 16 1/2 - 13 3/4 - 18 3/4 - 16 3/4 - 13 3/4 - 10 3/4 - 9 1 - 16 1 - 14 1 - 12 1 - 10 1 - 10H 1 1/2 - 16 1 1/2 - 14 1 1/2 - 13 1 1/2 - 12 1 1/2 - 10L 1 1/2 - 10 1 1/2 - 10H 1 1/2 - 9
|
63 90 86 114 42 57 104 43 70 86 147 44 54 80 120 180 45 76 105 170 200 40 33 60 74 79 170 200 120
|
.200 .200 .250 .250 .333 .333 .333 .500 .500 .500 .500 .923 .923 .923 .923 .923 1.00 1.00 1.00 1.00 1.00 1.33 1.41 1.33 1.41 1.33 1.41 1.41 1.33
|
.41 .41 1.0 1.0 1.0 1.0 1.0 1.2 1.2 1.2 1.2 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.3 2.3 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0
|
.109 .094 .167 .155 .219 .250 .188 .438 .438 .375 .335 .870 .840 .810 .780 .740 .920 .875 .750 .750 .719 1.25 1.32 1.22 1.28 1.20 1.13 1.00 1.16
|
.281 .281 .747 .703 .781 .750 .688 .938 .938 .906 .826 1.69 1.69 1.64 1.60 1.50 1.65 1.75 1.53 1.69 1.69 2.63 2.63 2.55 2.63 2.52 2.47 2.38 2.45
|
.030 .036 .036 .048 .030 .036 .048 .036 .048 .060 .090 .048 .060 .090 .090 .135 .060 .075 .105 .135 .135 .060 .075 .090 .105 .090 .135 .135 .135
|
.049 .063 .072 .072 .056 .063 .087 .072 .082 .086 .098 .102 .099 .098 .147 .149 .090 .122 .120 .151 .178 .107 .075 .107 .097 .140 .213 .251 .142
|
Flat | |||||||
No. Style | Pounds/ 100 sq.ft. | A [Inch] | B [Inch] | C [Inch] | D [Inch] | E [Inch] | F [Inch] |
3/16 - 22F 3/16 - 20F 1/4 - 20F 1/4 - 18F 5/16 - 22F 5/16 - 20F 5/16 - 18F 1/2 - 20F 1/2 - 18F 1/2 - 16F 1/2 - 13F 3/4 - 18F 3/4 - 16F 3/4 - 13F 3/4 - 10F 3/4 - 9F 1 - 16F 1 - 14F 1 - 12F 1 - 10F 1 1/2 - 16F 1 1/2 - 14F 1 1/2 - 13F 1 1/2 - 12F 1 1/2 - 10F 1 1/2 - 9F
|
61 88 83 111 39 54 95 40 66 82 140 40 52 76 118 171 41 73 101 165 38 46 57 56 165 114
|
.188 .188 .250 .250 .333 .333 .333 .500 .500 .500 .500 .923 .923 .923 .923 .923 1.00 1.00 1.00 1.00 1.33 1.33 1.33 1.41 1.41 1.33
|
.406 .406 1.02 1.03 1.02 1.03 1.03 1.25 1.25 1.25 1.24 2.10 2.10 2.08 2.10 2.12 2.51 2.16 2.25 2.50 3.10 3.10 3.10 3.01 3.23 3.20
|
.078 .078 .094 .094 .203 .203 .172 .340 .313 .300 .250 .690 .690 .690 .637 .560 .780 .750 .690 .625 1.06 1.06 1.06 1.22 1.00 1.00
|
.313 .313 .688 .688 .813 .813 .844 1.00 .969 1.00 1.00 1.75 1.75 1.78 1.755 1.69 2.06 1.81 1.75 1.88 2.75 2.75 2.75 2.75 2.49 2.56
|
.027 .032 .029 .042 .027 .033 .042 .030 .042 .050 .070 .042 .054 .070 .070 .120 .048 .067 .088 .125 .048 .061 .070 .088 .125 .110
|
.063 .075 .086 .080 .075 .075 .104 .071 .094 .101 .110 .112 .094 .104 .160 .160 .100 .141 .156 .188 .120 .120 .130 .110 .233 .170
|
* The products listed above and all details is for information purposes only and we are not responsible for any innacuracies. Please call us for availability.
